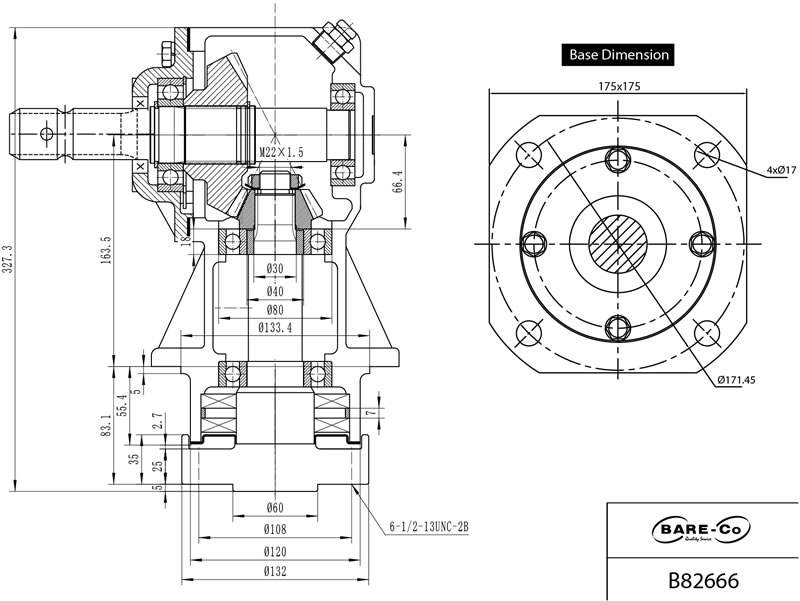

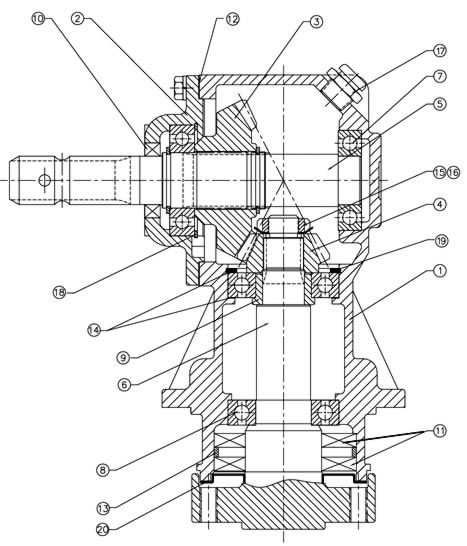

40 HP Gearbox (1:1.93) Part No. B82666 - 1:1.93 ratio SPECIFICATIONS A = 160mm (6.3") HOUSING: SHAFTS: GEARS: SEALS: BEARINGS: OIL: WEIGHT: INPUT SHAFT: 60-45-10 Nodular UNS G51200 UNS G51200 Triple Lipped, Spring Loaded Duplicate Lower Seals Deep Groove Ball EP-140, 26oz, 0.77l 48 lbs, 21.6 kg 1 3/8" x 6 spline SPARE PARTS REF PART No. QTY DESCRIPTION 1 B7852 1 Housing 2 B7385 1 Cap, Thru 3 B7853 1 Gear, Input 29t 4 B7854 1 Pinion, 15t 5 B7013 1 Shaft, Input 6 B7855 1 Shaft, Flanged Output 7 B62 1 Bearing, Ball 8 B60 3 Bearing, Ball 9 B7856 1 Bushing 10 B2953 1 Seal, Input 11 B7857 2 Seal, Output 12 B7383 1-A/R Gasket Input, 0.40mm 13 B7858 1-A/R Spacer 14 B7859 2-A/R Shim Output, 0.10mm 15 B7860 1 Nut, Bearing M22 X 1.5 16 B7861 1 Washer, Tabbed M22 17 B7687 1 Plug, Pressure Relief, 1/4"-18NPT 18 B7384 1 Retaining Ring, 80mm 19 B7862 1 Retaining Ring, 80mm 20 B7863 1 Seal Protector
